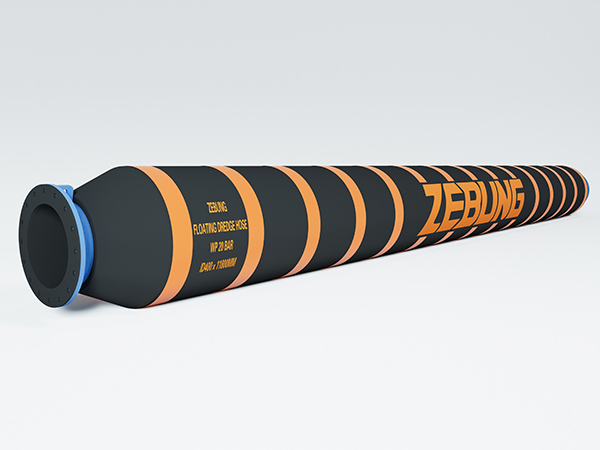

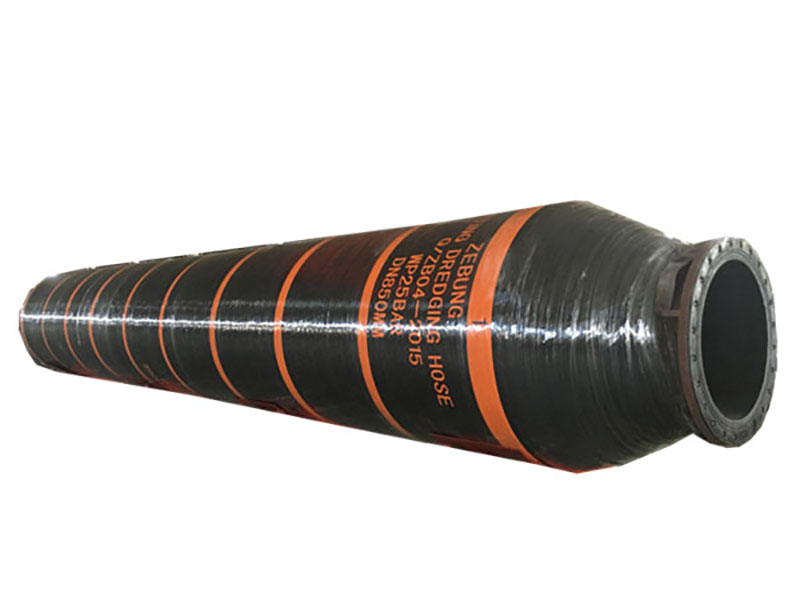

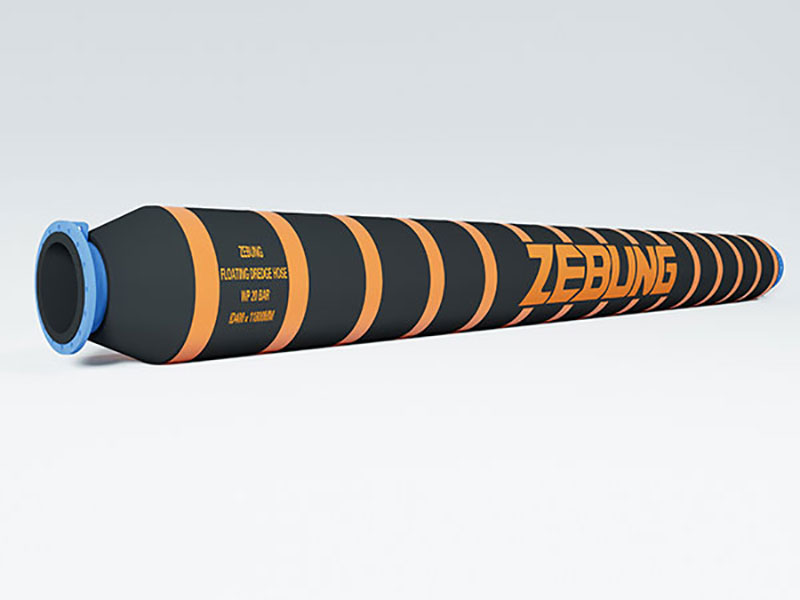

Floating Dredge Hose

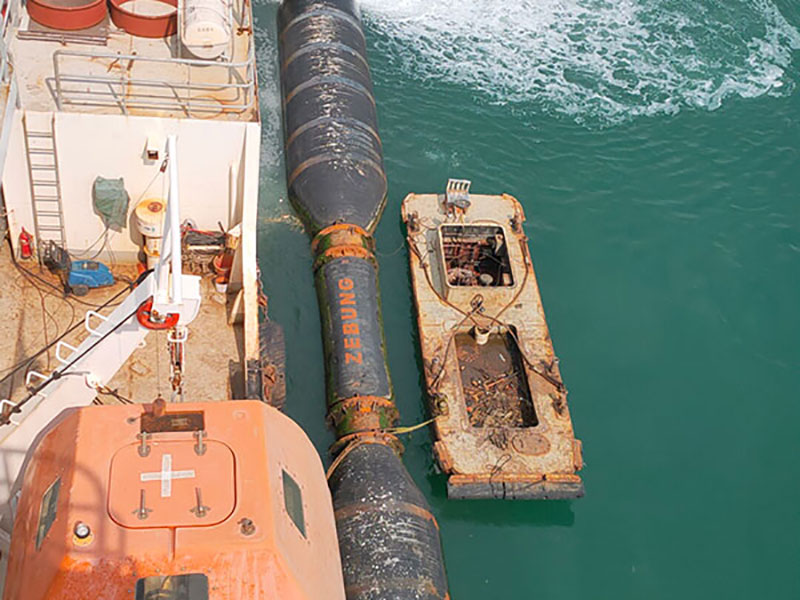

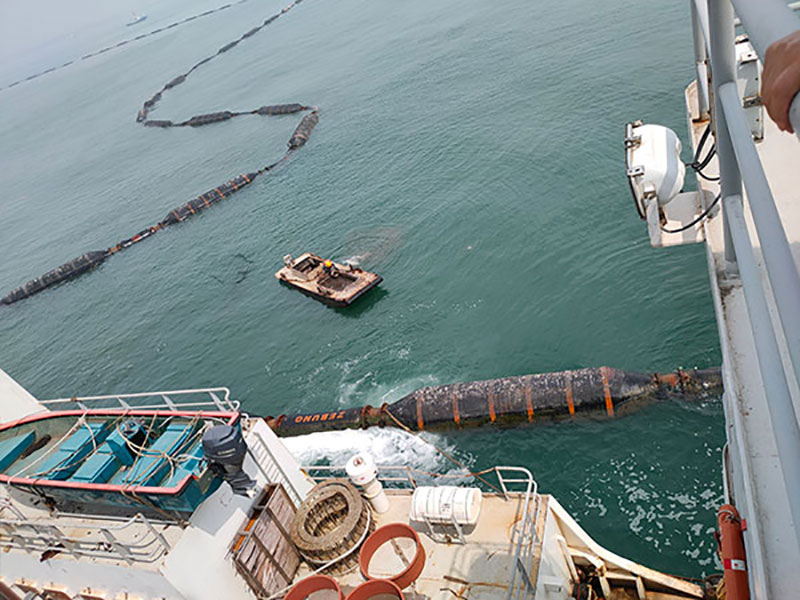

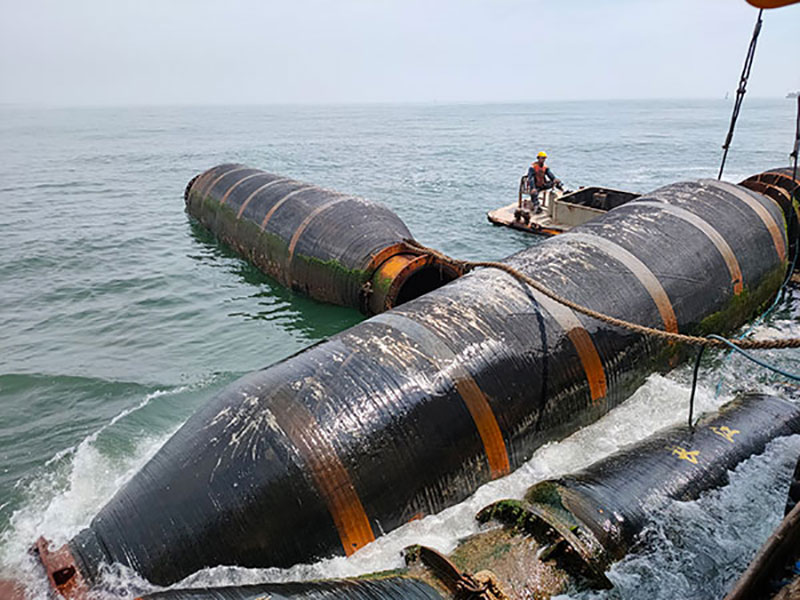

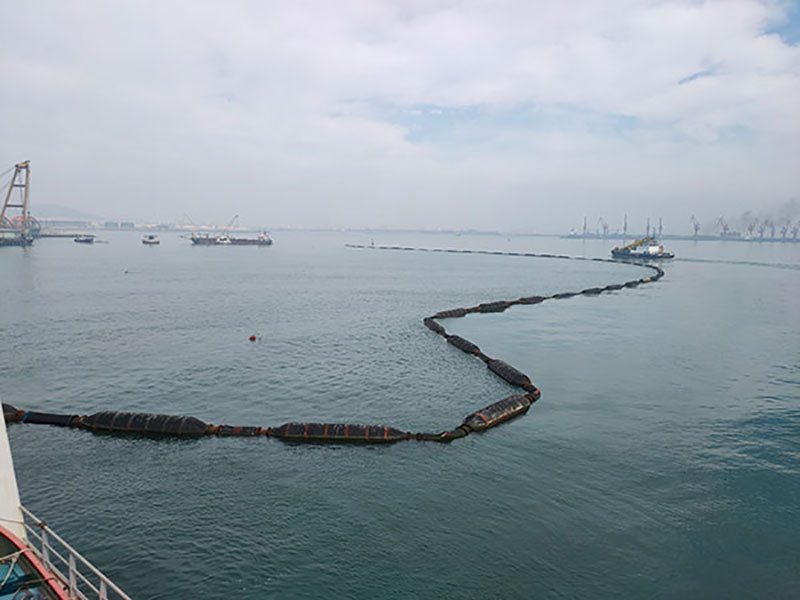

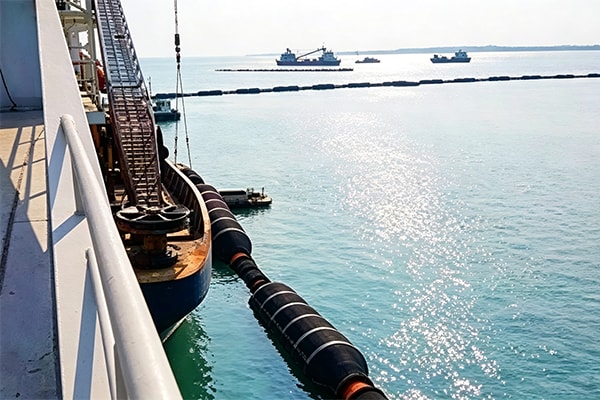

Our floating dredge hoses are intended for port and dock discharging of seawater, silt, sand and other dredging applications. They are commonly used in part of the construction process of docks and ports.

Features

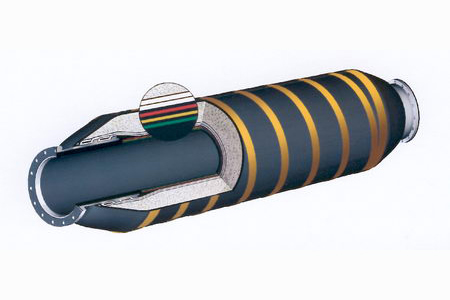

1. The outer cover is made from a rubber compound that is highly resistant against weathering, UV and Ozone.
2. Wear indicator layers can be implemented in the dredge hoses which transport abrasive media.

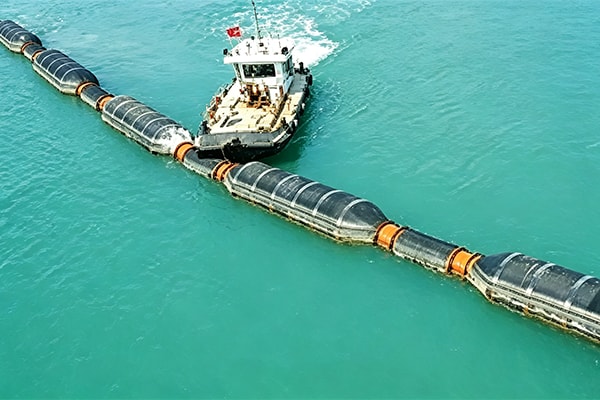

3. A single foam floating layer prevents water absorption. The hose emergence above the water is not less than 20% of the total volume.
4. Inner layer: high quality, excellent abrasion resistant rubber.
5. Custom flanges available.
6. Bending angle: in working conditions, the bending angle is from 0° to 45°.
7. Working temperature range: -25℃ to 80℃
8. Safety factor: 4:1

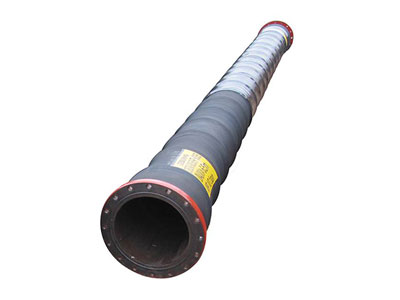

We can supply a wide range of floating and submarine (non-float) rubber flexible hoses. Internal diameter (ID) options include, 35"(900 mm), 20"(500 mm), 16"(400 mm), 12"(300 mm), 10"(250 mm), 8"(200 mm) to 6"(150 mm). Other diameters and special requirements can also be supplied upon request and availability.

Size I. D. W.P. Tube Thickness ≥ mm Cover Thickness ≥ mm Length
8inch 200mm 15bar~20bar 10 4 11.8m
10inch 250mm 15bar~20bar 10 4 11.8m
12inch 300mm 15bar~20bar 10 4 11.8m
16inch 400mm 15bar~20bar 12 5 11.8m
20inch 500mm 15bar~20bar 12 5 11.8m
24inch 600mm 15bar~20bar 20 5 11.8m
26inch 650mm 15bar~20bar 25 5 11.8m
30inch 750mm 15bar~20bar 30 6 11.8m
32inch 800mm 15bar~20bar 32 6 11.8m
34inch 850mm 15bar~20bar 32 6 11.8m

Note: ID900mm & 1200mm, other parameters are available upon request.

Certificates

  • BV Test Report (Single Carcass Floating Prototype-DN300mm)
  • BV Test Report (Single Carcass Floating Prototype-DN600mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN300mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN600mm)
  • BV Test Report (Submarine Double Carcass Prototype-DN600mm)
  • BV Test Report (Floating Double Carcass Prototype-DN600mm)
